KODAK

      ACHIEVE T400/T800 Platesetters

            Exceptional quality. Entry-level cost.

T400

Throughput at 2400 dpi
For plate size 724 x 838 mm:
S speed = 21 plates per hour
F speed = 28 plates per hour

T800

Throughput at 2400 dpi
For plate size 1,030 x 800 mm:
S speed = 16 plates per hour
F speed = 22 plates per hour

Seamless integration with KODAK Solutions

The KODAK ACHIEVE T400/T800 Platesetters are optimized for KODAK Media and open for other vendors' qualified plates.
SONORA XP Process Free Plates
TRILLIAN SP Thermal Plate
ELECTRA XD Thermal Plates

Time Tested Technology

Benefits of Thermal Platesetters SQUAREspot Imaging Technology for accurate and stable imaging Low Environmental Impact with KODAK SONORA Process Free Plates

General specifications
Technology 830 nm platesetter with TH5 Imaging Technology, external drum
Automation options

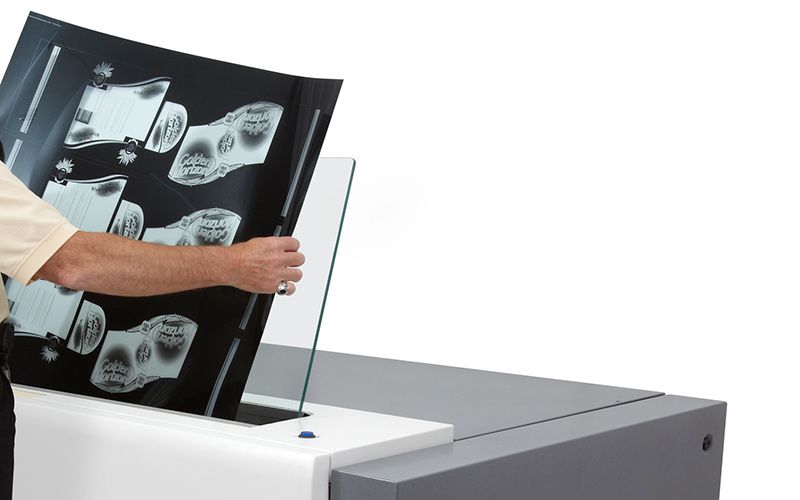

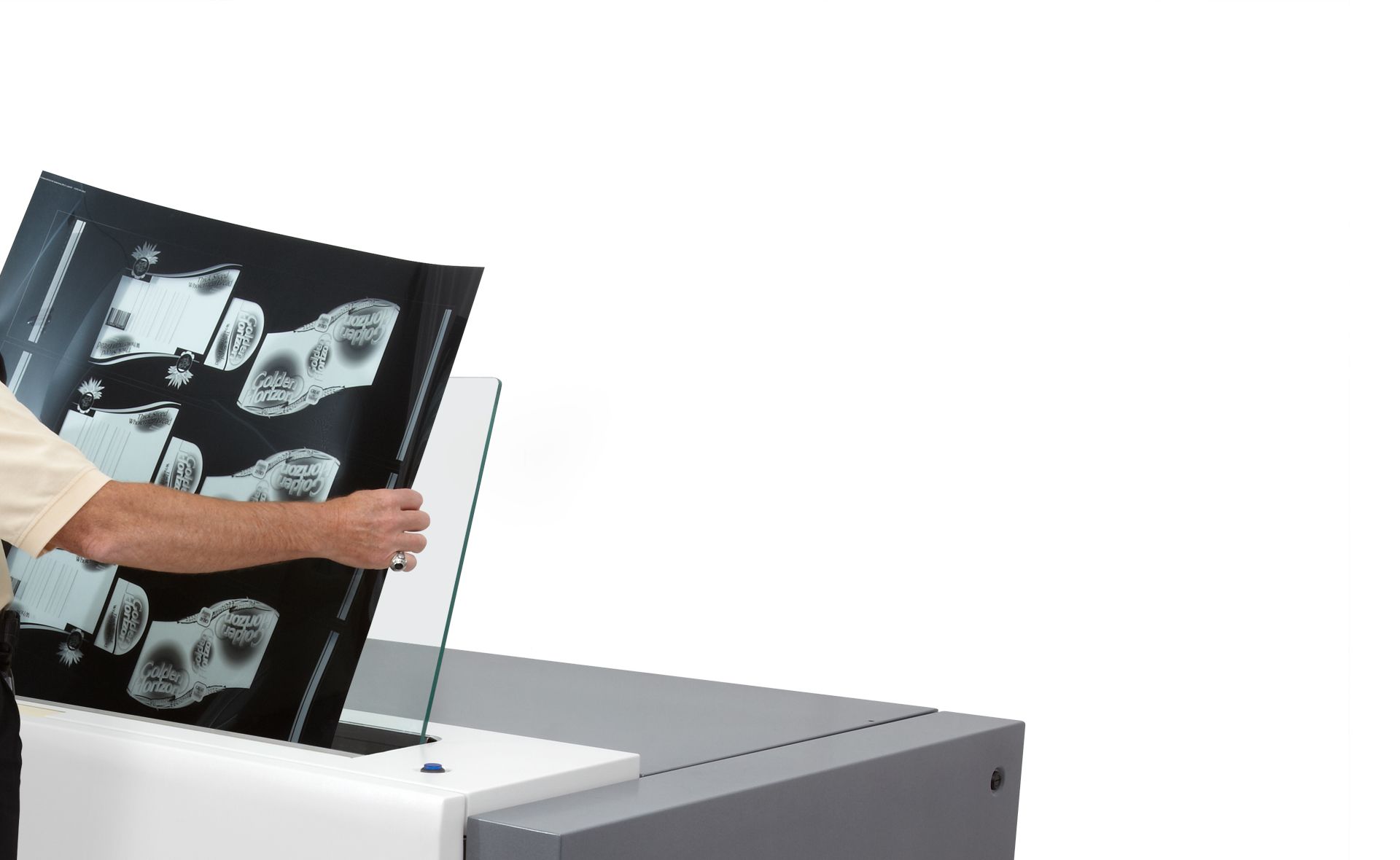

  • Standard: Semi-automatic plate loading and unloading.
  • Auto Unload (optional): Semi-automatic plate loading and automatic unloading to plate processor or stacker; optional automatic plate rotation. 1
  • Autoloader (optional): Automated plate loading and unloading of up to 40 plates without slip sheets (0.3 mm); optional automatic plate rotation. 1
  • Single Cassette Unit (optional): Automated plate loading and unloading of up to 120 plates (0.3 mm) with automated slip sheet removal, optional automatic plate rotation. 1
  • Multi Cassette Unit (optional): Automated plate loading and unloading of up to 480 plates in 4 cassettes, each containing up to 120 plates of the same size and thickness with slip sheets, enabling up to 4 plate sizes online. The required cassette is automatically selected according to job definition. Standard: 2 cassettes. Optional: 4 cassettes total. Optional automatic plate rotation. 1
In-line punch option
  • Up to 10 customized punch heads. Select from a list of punches qualified for ACHIEVE T400/T800 Platesetters
  • Optional automatic punching is operated according to press profile selected from the KODAK Workflow
  • Punch is available on the front edge of the plate only
  • Automatic punch system adjustment for centering of plate
Media support
  • KODAK SONORA Process Free Plates
  • KODAK ELECTRA MAX Thermal Plates
  • KODAK ELECTRA XD Thermal Plates
  • KODAK ACHIEVE EM Thermal Plates
  • KODAK TRILLIAN SP Thermal Plates  2
Performance specifications T400 Platesetter T800 Platesetter
Throughput at 2400 dpi 3,4  plates per hour (pph) For plate size 724 x 838 mm
  • S speed = 22 pph
  • F speed = 28 pph
For plate size 1,030 x 838 mm
  • S speed = 16 pph
  • F speed = 22 pph
Repeatability ± 5 microns between two consecutive exposures on the same plate left on the drum
Accuracy ± 20 microns between two plates imaged on the same device
Registration ± 25 microns between image and plate edge
Workflow connectivity Standard KODAK Print Console with TIFF Downloader Software included; connects to KODAK PRINERGY Workflow and most third-party workflow systems. JDF/JMF Connectivity Option enables functionality in the Print Console software to provide job and device status.
Imaging specifications T400 Platesetter T800 Platesetter
Resolution 2400 dpi or 1200 dpi
Screening 200 lpi max line screen;  Optional: 36-micron KODAK STACCATO Screening
Maximum plate size: around drum x along drum 5 838 x 990 mm
  • Standard: 838 x 1,143 mm
  • Auto Unload/Autoloader/SCU/MCU: 838 x 1,118 mm
Minimum plate size: around drum x along drum 5
  • Standard: 267 x 215 mm
  • Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm 6
  • Standard: 267 x 215 mm
  • Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm 6
Maximum image area: around drum x along drum 827.9 x 990 mm
  • Standard: 827.9 x 1,143 mm
  • Auto Unload/Autoloader/SCU/MCU: 827.9 x 1,118 mm
Physical characteristics
Size (H x W x D) / Weight
  • Standard: 160 x 200 x 120 cm / 650 kg
  • Auto Unload: 170 x 200 x 128 cm / 762 kg
  • Autoloader: 184 x 200  128 cm / 796 kg
  • SCU: 186 x 233 x 231 cm / 1,158 kg
  • MCU: 191 x 233 x 254 cm / 1,837 kg
  • In-Line punch system option: 102 x 151 x 120 cm / 177 kg
  • For long unload table with plate rotation option: height becomes 210 cm, and 53 cm is added to the depth. Add 10 kg to weight.

1  Cannot be combined with in-line punch system.

2  Resolution limited to 150 lpi for TRILLIAN SP Plates only.

3  Imaging speed and throughput is dependent on media sensitivity. All values are for media sensitivity of 120mJ/cm 2

4  Tested with KODAK Workflow Solutions. For additional information about the test conditions, please consult your Kodak representative.

5  Standard plate gauge is 0.15 to 0.3 mm (0.006 to 0.012 in). Option available for plate gauge of 0.15 to 0.4 mm (0.006 to 0.016 in). The 0.40 mm plate size is only supported for the “SA” manual device, or in manual bypass for the AU, AL, SCU and MCU. For plate gauges 0.15 to 0.2 mm (0.006 to 0.08 in) there may be some differences in min and max. plate sizes. For more information, please consult your Kodak representative.

6  Minimum plate size around drum is 383 mm with the plate rotation option, and minimum plate size for manual bypass is 305 x 215 mm.

The platesetter is a Class 1 Laser Product and fully complies with EN60825-1 and US Federal Regulations 21 CFR 1040.10 - CDRH.
